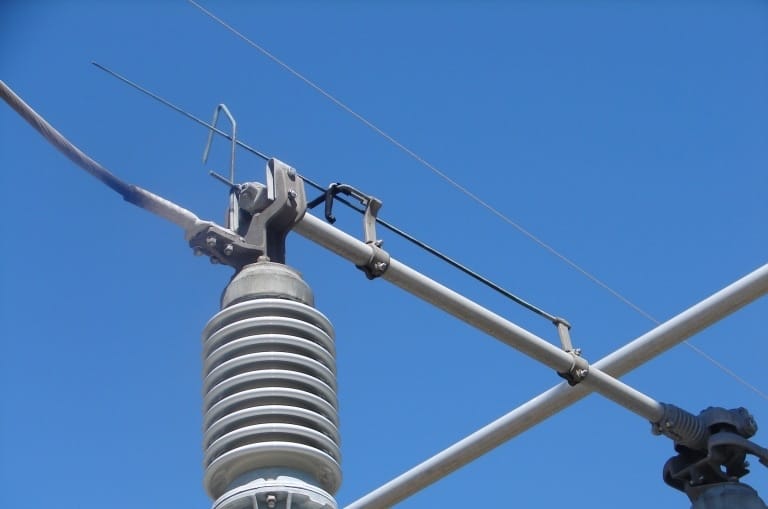

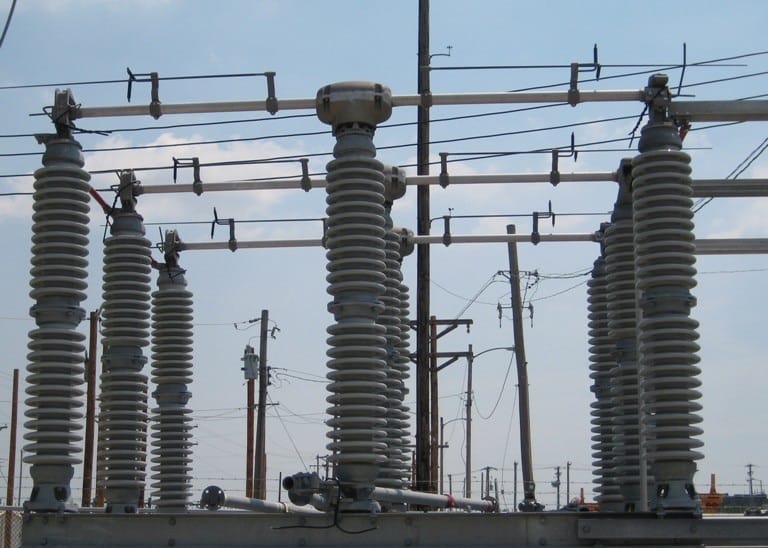

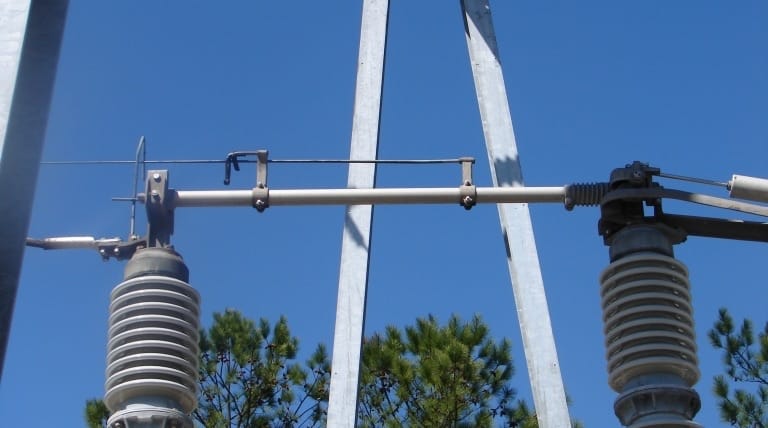

Quick Break Whip

Increase Line Drop Capabilities

The Quick Break Whip increases the line dropping capability of a disconnect by increasing the speed of contact separation during the opening of a switch. It is difficult to specify the exact level of interrupting capability as factors such as phase spacing, wind, rain, humidity, and atmospheric pollution will affect the arc that is drawn as the whip contact separates from the jaw of the switch. Over time the capability of the whip type arcing horn is affected due to the change in length of the whip resulting from the arcing that occurs during interruption.

  • Easy and fast installation
  • Simple design
  • Medium tip speed
  • Bronze/stainless steel construction
  • Short arc length

Transformer Magnetizing and Line Charging

Vertical BreakCenter BreakDouble Side Break
Quick BreakQuick BreakQuick Break
KVClass 1Class 2KVClass 1Class 2KVClass 1Class 2
15.520.020.015.512.015.015.5
25.818.018.025.812.015.025.8
3815.015.03812.015.038
48.314.015.048.312.015.048.3
72.510.015.072.55.612.072.5
1218.012.01215.19.61211218
1456.08.01455.07.0145912
1694.06.016916969
245245245
245245245
362362362
362362362
