Magnetic Actuated Close Indicator

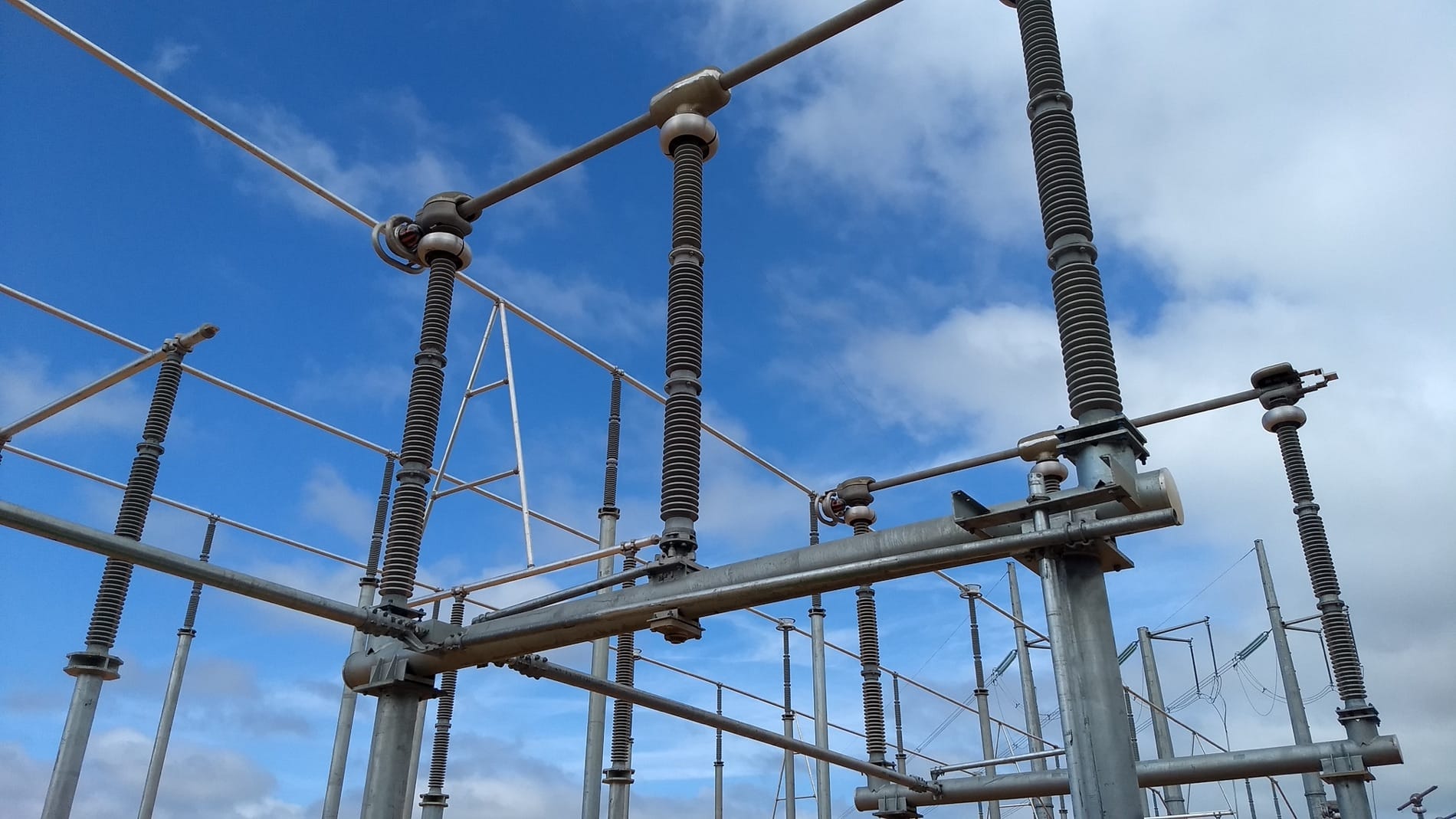

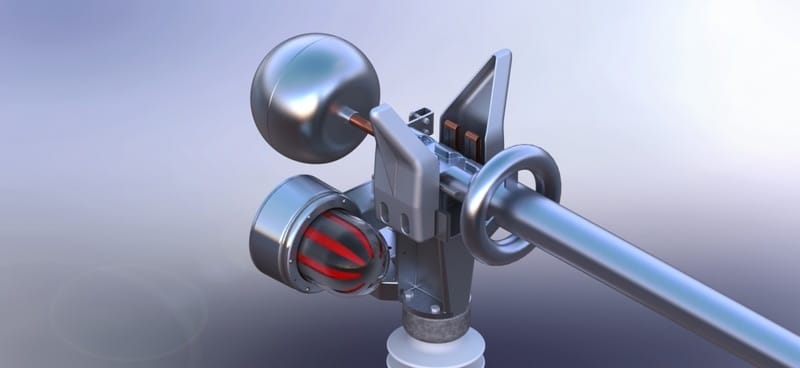

Verifying proper blade depth and rotation of a high voltage disconnect switch closure has created challenges for ground level operators. Southern States MACI® introduces patented magnetic technology to provide highly-visible, foolproof indication of a proper switch closure. By providing this assurance, the potential for unwanted costs associated with unplanned power outages is minimized. Additionally, MACI®’s reflective “closed” pattern provides visibility up to 100 ft and will not interfere with operation, even in icy conditions.
- Visible from 100ft
- Reflective “closed” pattern for visibility at night
- Retrofitted to any vertical break or double side break switch
- Will not interfere with operation, even in icy conditions
- Binary indicator – No intermediate position
- False positive not possible
Voltage Rating | Current Range |
72kV | 1200A - 3000A (RDA-1 & RDA-1V) |
123kV | |
145kV | |
170kV | |
245kV | 1200A – 3000A (RDA-1) & 2000A – 4000A (RDA-1V) |
362kV | 1200A – 5000A (RDA-1) & 2000A – 5000A (RDA-1V) |
550kV | 2000A – 4000A (RDA-1) |
