Reliable, Low Operating Effort Disconnect Switches

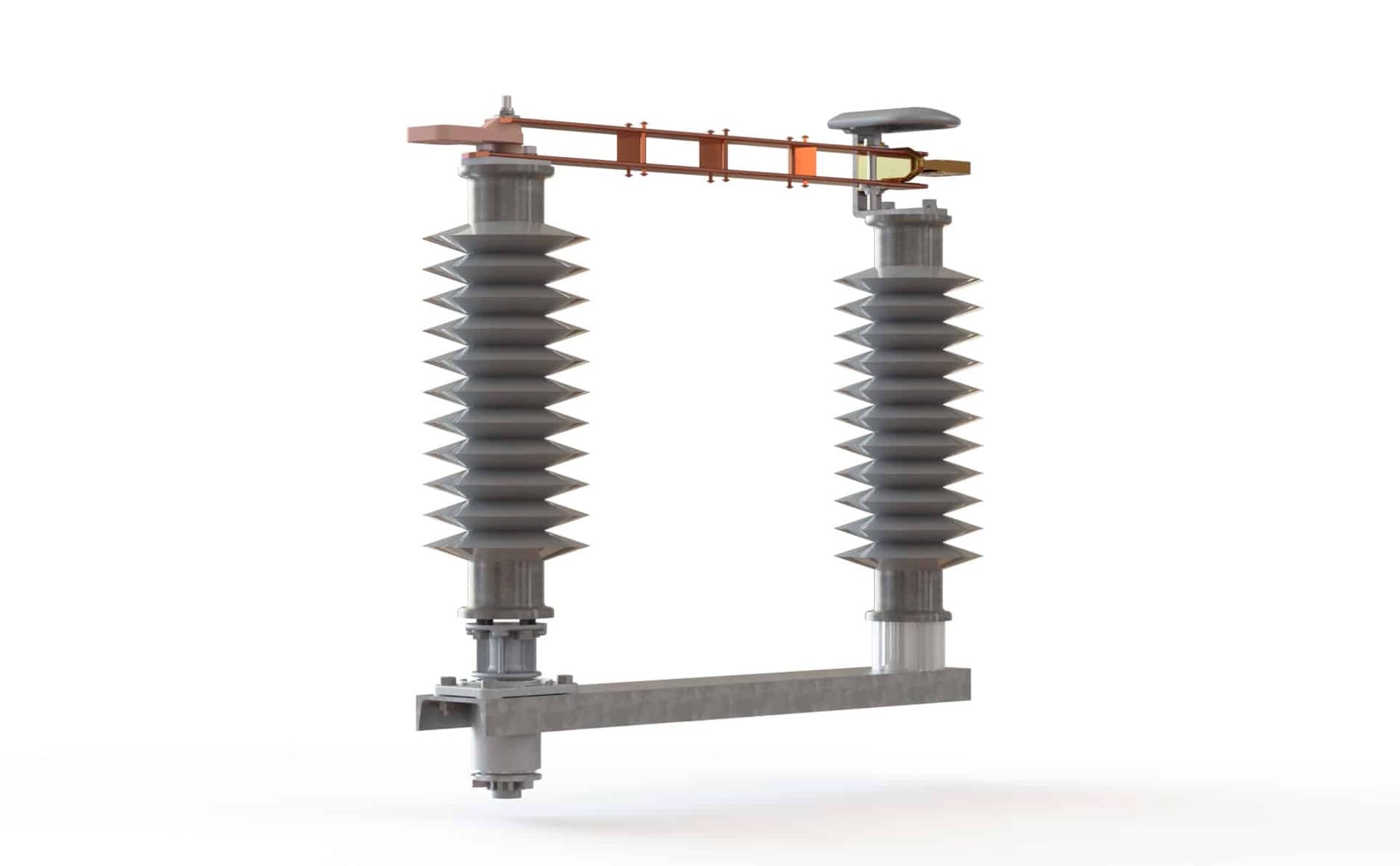

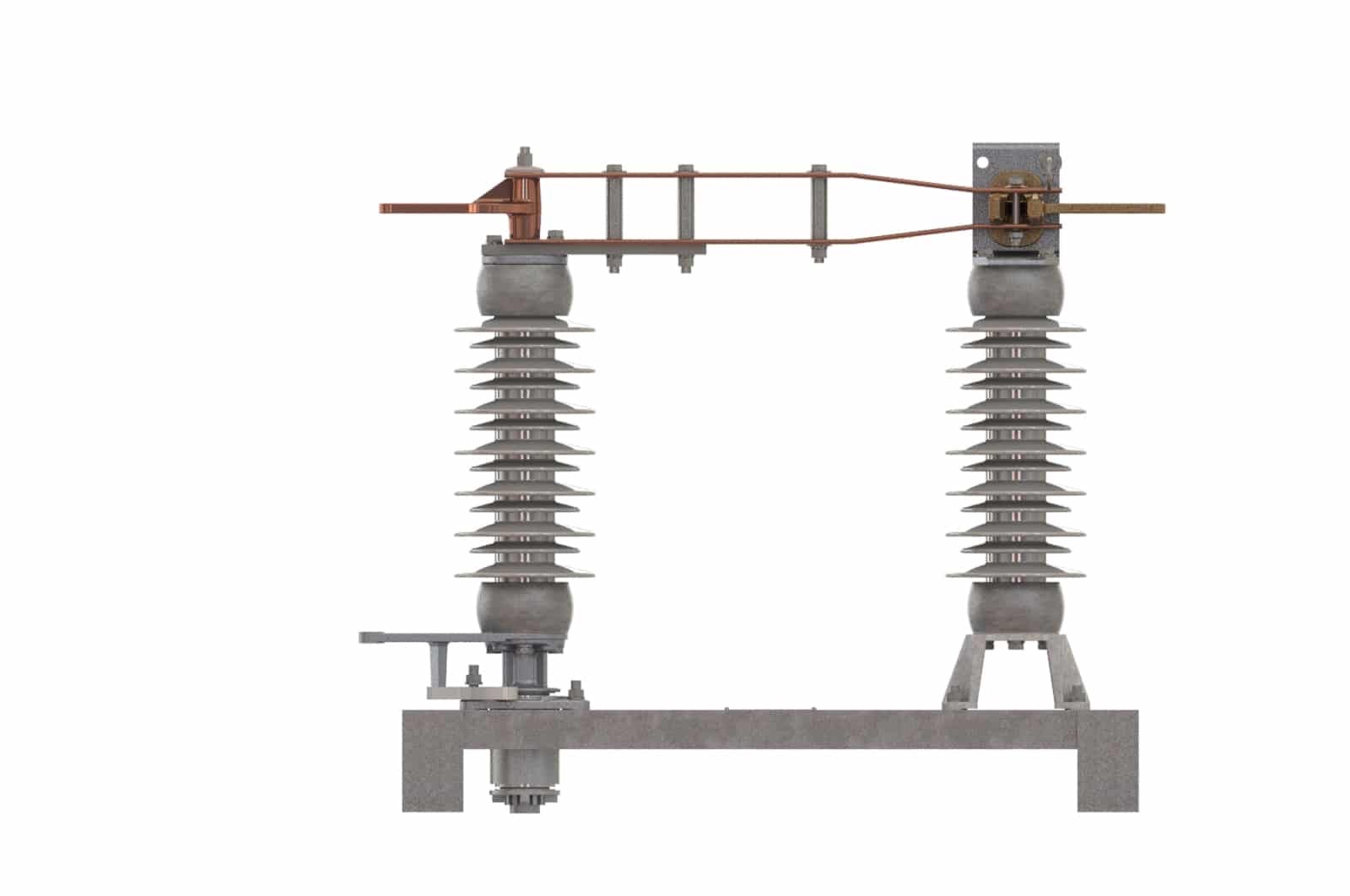

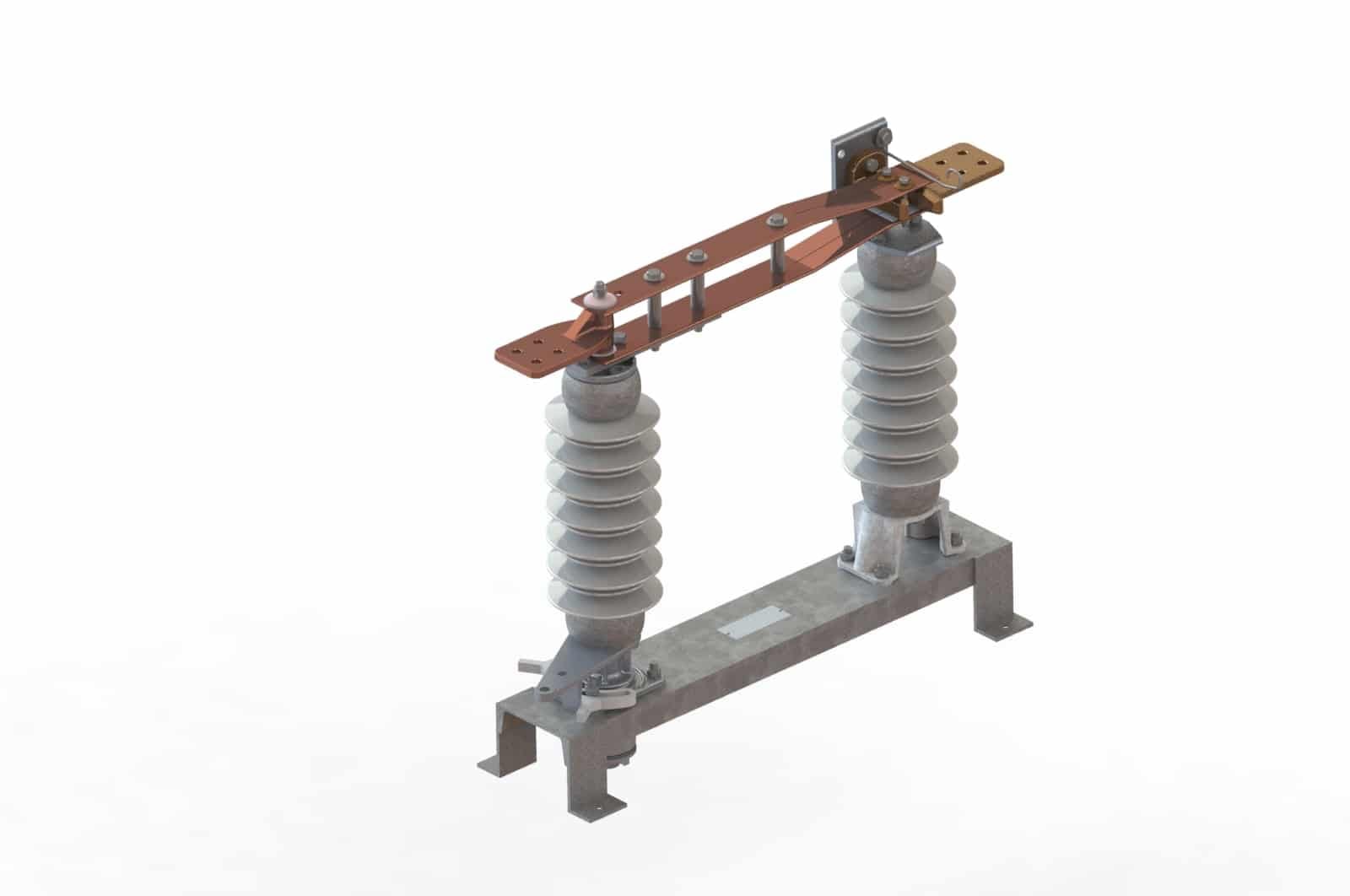

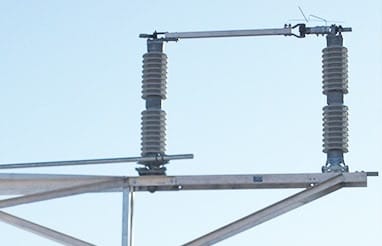

Southern States offers a complete line of single side break group operated disconnect switches. Its easy to install design requires low operating effort and is ideal for sub transmission and distribution applications. In addition, the design philosophy has been adopted for the ES-1 transmission line switch, available in one-way or multi-way configurations.
- Meet all ANSI standards
- Low operating effort
- Minimal maintenance
- Suitable designs for horizontal upright, vertical, or underhung mounting
- 2 insulators per switch
| Maximum Voltage / BIL | Phase Spacing | 1200A | 2000A |
| 15.5 kV / 110 kV | 30 in | SSB-T, SSB-A, or Cole Type L | SSB-T or Cole Type L |
| 27 kV / 150 kV | 36 in | SSB-T, SSB-A, or Cole Type L | SSB-T or Cole Type L |
| 38 kV / 200 kV | 48 in | SSB-T, SSB-A, or Cole Type L | SSB-T or Cole Type L |
| 48.3 kV / 250 kV | 60 in | ES-1, SSB-T, SSB-A, or Cole Type L | ES-1, SSB-T, or Cole Type L |
| 72.5 kV / 350 kV | 72 in | ES-1, SSB-T, SSB-A, or Cole Type L | ES-1, SSB-T, or Cole Type L |
| 123 kV / 550 kV | 108 in | ES-1 | ES-1 |
| 145 kV / 650 kV | 132 in | ES-1 | ES-1 |
Application Guide
Catalog Flyers & Bulletins
Cole Type L 8.3kV-72.5kV Catalog Flyer
ES-1 72.5kV-145kV Catalog Flyer
ES-1 72.5kV-145kV Catalog Flyer (Pole Mounted Transmission Line Switch) (Descargar versión en español)
SSB-A 15.5kV – 72.5kV Catalog Flyer
SSB-T 15.5kV – 72.5kV Catalog Flyer
Instruction Books
Cole Type L (8.3kV-72.5kV) Instruction Book
ES-1 & ES-1B Copper (All Ratings) instruction Book
ES-1 2 & 3 Way Instruction Book
SSB-T & SSB-A (15.5-72.5kV) Instruction Book
