Protect what powers your grid

Our modular Ballisti-Wall^® and Ballisti-Cover^® systems provide unmatched protection for transformers, data center equipment, control cabinets, and control houses — keeping your most critical assets safe and operational.

Originally engineered for the Department of Defense, these systems are built with proprietary fiberglass-reinforced panels that stop up to .50 cal supersonic BMG rounds, tested and certified to UL-752 standards by Underwriters Laboratories. That means proven, military-grade defense you can trust for NERC CIP-014 compliance. Beyond stopping threats, the advanced composite matrix captures projectiles and prevents ricochet, eliminating secondary risks to equipment and personnel. Lightweight yet extremely durable, Ballisti-Wall® and Ballisti-Cover® deliver long-term reliability with added benefits of corrosion resistance, electrical non-conductivity, and low thermal conductivity.

Key Benefits:

Military tested, UL-752 Level 10 certified, and NERC CIP-014 compliant
Corrosion resistant, UV protected, and thermally stable for long life cycles with minimal upkeep
Lightweight and strong — about 25% the weight of steel with a high strength-to-weight ratio
Ships finished for quick installation, requiring minimal equipment
Modular design for easy removal or replacement
Paintable, available in custom colors, and configurable for site-specific layouts
Electrically and thermally non-conductive, electromagnetically transparent
Non-ricochet and spall-resistant — effective against line-of-sight and radiant heat threats
Backed by Southern States' 24/7 after-sales support and long-life engineering

Product Family

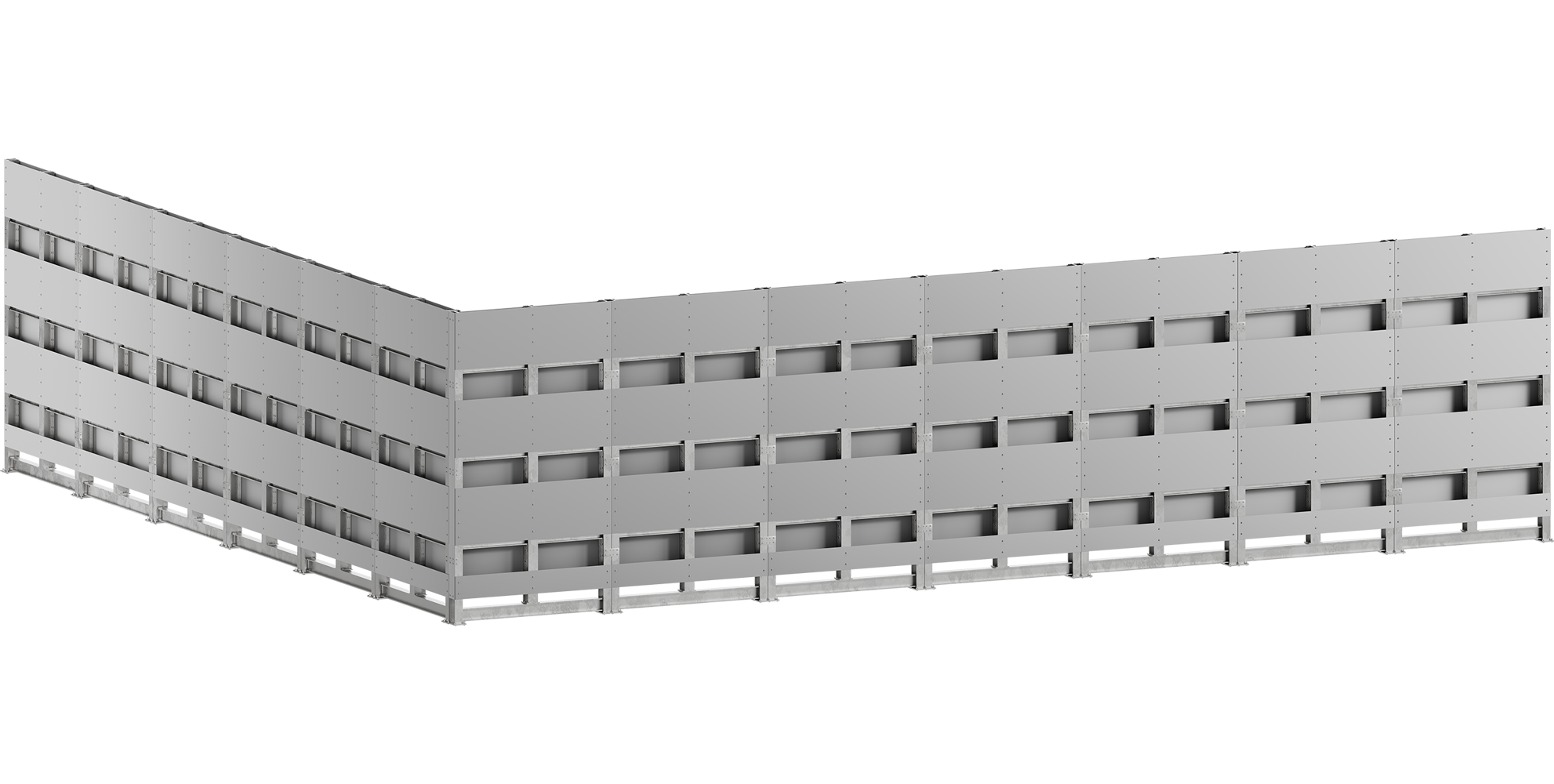

Ballisti-Wall^®

Custom-designed modular sections are easy to erect with minimal effort and equipment
Ballistic panels are overlapped, staggered, and attached to steel or fiberglass wide flange beams for total protection and consistent airflow
Individual panels can be replaced without removing the entire section

Ballisti-Cover^®

Protects critical substation assets including control houses, breaker/transformer cabinets, and SCADA/communications equipment
Designed for maximum security with straightforward installation and removal

Parameter	Typical Value	Weight (grains)	Weight (grams)	Min. fps	Max. fps	Number of Shots
Table of UL Standard 752 Level Ratings
Level 1	9mm full metal copper jacket with lead core	124	8.0	1175	1293	3
Level 2	.357 magnum jacketed lead soft point	158	10.2	1250	1375	3
Level 3	.44 magnum lead semi-wadcutter gas checked	240	15.6	1350	1485	3
Level 4	.30 caliber rifle lead core soft point (.30-06 caliber)	180	11.7	2540	2794	1
Level 5	7.62mm rifle lead core full metal copper jacket military ball (.308 caliber)	150	9.7	2750	3025	1
Level 6	9mm full metal copper jacket with lead core	124	8.0	1400	1540	5
Level 7	5.56mm rifle full metal copper jacket with lead core (.223 caliber)	55	3.56	3080	3383	5
Level 8	7.62mm rifle lead core full metal copper jacket military ball (.308 caliber)	150	9.7	2750	3025	5
Level 9	.30-06 caliber rifle, steel core, lead point filler, FMJ (APM2)	166	10.8	2715	2987	1
Level 10	.50 caliber rifle, lead core FMCJ military ball (M2)	709.5	45.9	2810	3091	1
Shotgun	12-gauge rifled lead slug 12-gauge 00 buckshot (12 pellets)	10 oz. 1.5 oz.	28.3 42	1583 1200	1744 1320	3 3
