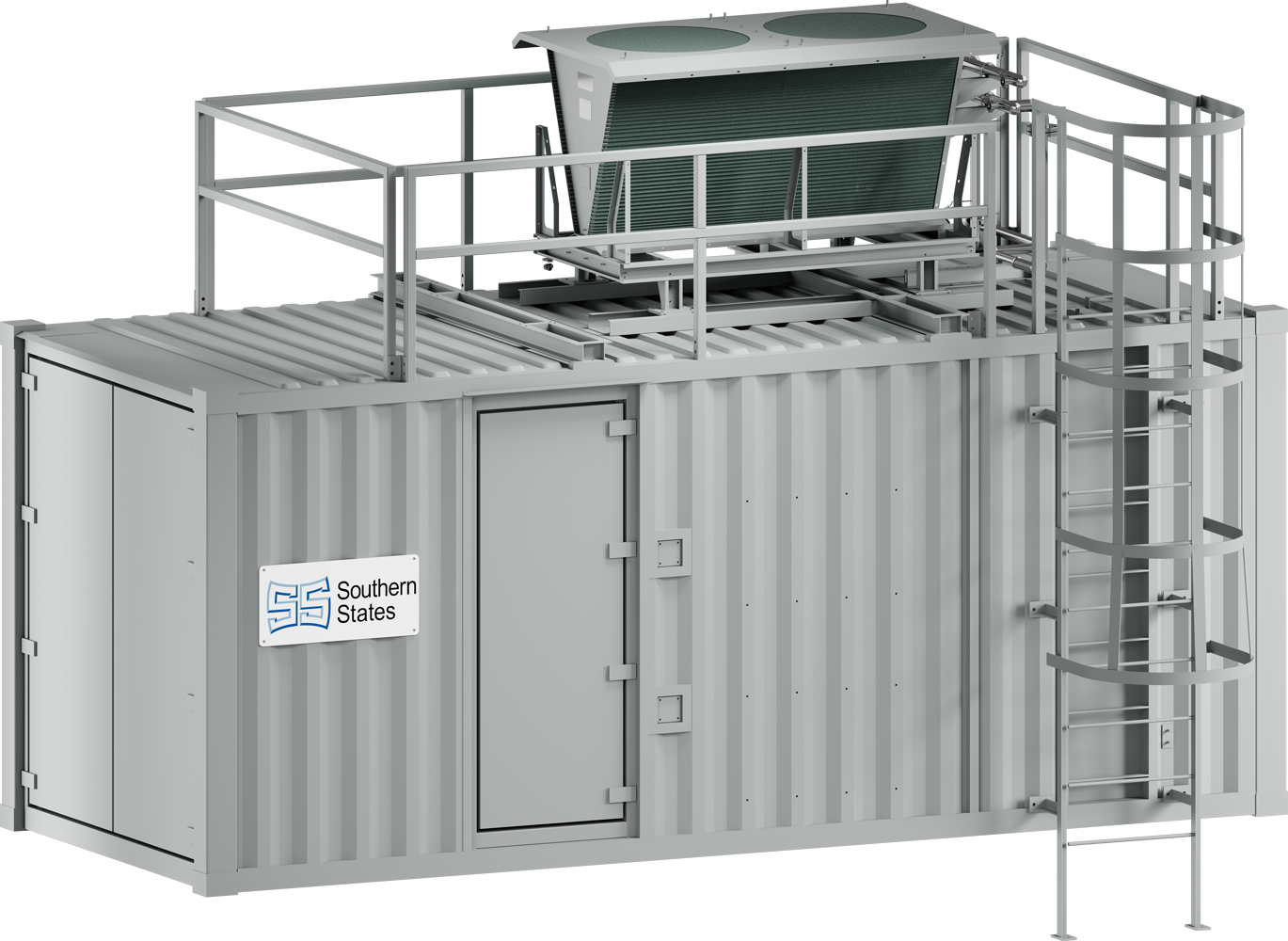

Our modular STATCOM (Static Synchronous Compensator) provides real-time reactive power compensation and dynamic voltage support for demanding industrial environments such as steel plants, mining operations, data centers, and renewable energy systems.
Engineered to handle severe power disturbances and rapidly changing loads, it delivers ultra-fast response and precise voltage and power factor control.
| Parameter | Typical Value |
|---|---|
| Power Range | 2 Mvar – 200+ Mvar |
| Connection Voltage | 4.16 kV - 230 kV |
| Response Time | <5 ms |
| Converter Technology | Modular Multilevel Converter (MMC) |
| Control Modes | Voltage, Reactive Power (Q), Power Factor |
| Harmonic Filtering Capability | Optional, Up to 13th Harmonic |
| Redundancy | Optional, Modular-Based |
| Cooling | Forced Air or Liquid Cooling |
| Feature | STATCOM | SVC | Capacitor Bank |
|---|---|---|---|
| Dynamic Response | <5 ms | 20–30 ms | Seconds/Minutes |
| Bidirectional Compensation | Yes (Capacitive & Inductive) | Yes | Capacitive Only |
| Harmonic Control | Yes (with Active Filter) | Yes (with Passive Filters) | No |
| Footprint | Compact (modular) | Larger footprint | Small |
| Scalability | High | Medium | Low |
Our STATCOM solutions are engineered for high-performance environments where power quality is mission-critical. Whether you face voltage instability, flicker, or rapidly changing loads, our technology is proven in some of the world’s most demanding sectors.
