Southern States offers one of the broadest ground switch portfolios in the industry — engineered for safety, flexibility, and long-term reliability.
Southern States’ product line includes one of the broadest selections of ground switches available worldwide. These switches are engineered for single-pole or group-operated applications to safely ground substation components during inspection, maintenance, or replacement of capacitor banks, circuit breakers, circuit switchers, and other equipment.
They can be installed as stand-alone devices or as attachments to disconnect switches, circuit switchers, and related equipment. Operation can be configured for a manual swing handle, manual gear, electric motor, or hookstick, with a chart available to specify configurations by kV class and short-time current rating.
Choose voltage rating:
| Ground Switch | Max Voltage Rating | Max BIL Rating | Momentary Current Rating | Type of Operator | Means of Contact Engagement | Current Transfer Method on Hinge End |
|---|---|---|---|---|---|---|
| LH-6 | 15.5 kV -145 kV | 110 kV - 650 kV | 61 kA | Manual swing handle or electric motor | Direct "slam-in" action | Flexible tin plated copper braids |

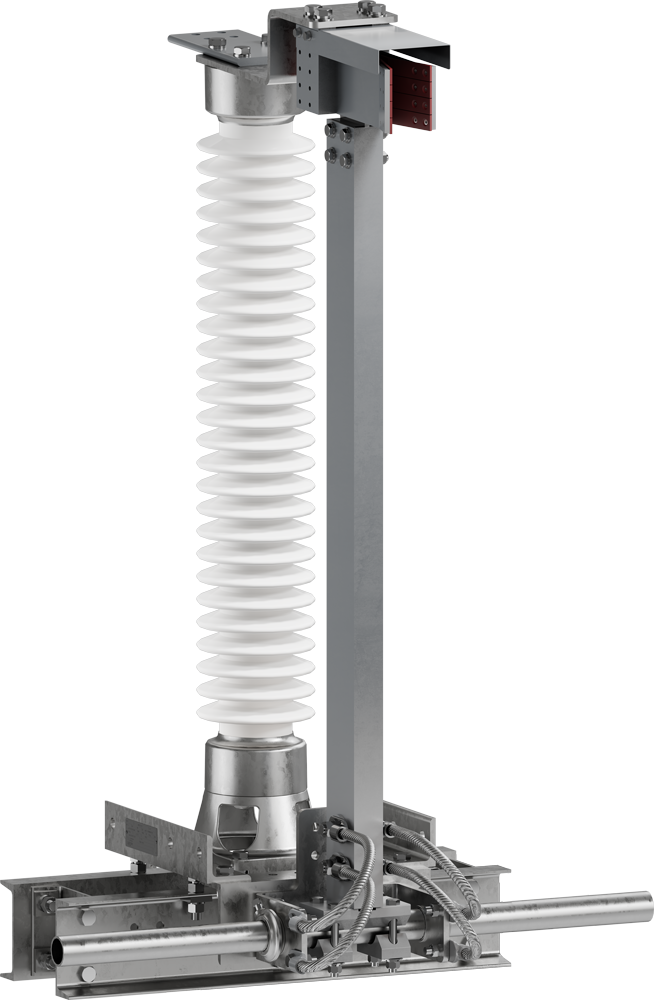

| ESD-63 | 38 kV - 245 kV | 200 kV - 900 kV | 100 kA | Manual swing handle, manual gear, or electric motor | Direct "slam-in" action | Flexible tin plated copper braids |

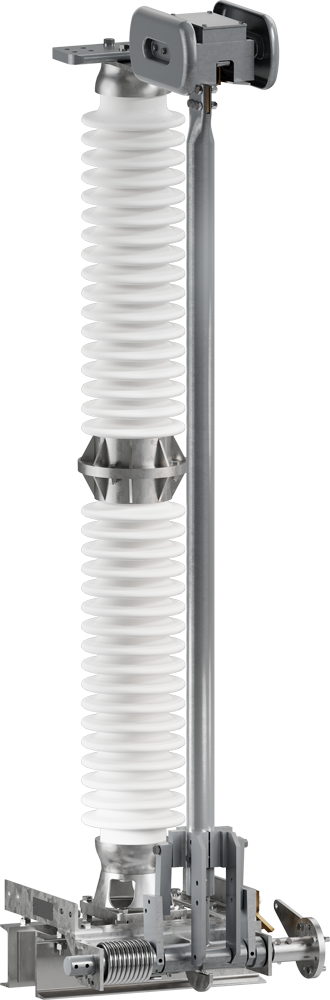

| TV-70 | 123 kV - 800 kV | 550 kV - 2050 kV | 120 kA | Manual swing handle, manual gear, or electric motor | Rotating blade | Flexible tin plated copper braids |
| EVG-1 | 15.5 kV - 550 kV | 110 kV - 1800 kV | 61 kA, 70 kA, 80 kA, 100 kA, 120 kA | Manual swing handle, manual gear, or electric motor | Rotating blade | Contact fingers |
| Model | Available kV Ratings | Closing Rating | Means of Blade Reset to Open Position |
|---|---|---|---|
| HRR | 15.5-169 | 40 kA | Hookstick |
| HRU | 15.5-169 | 40 kA | Manual Spade Handle Operator, Manual Swing Handle, Manual Gear Operator, or Electric Motor Operator |
