Capacitor Banks

We offer the best service and lead time in Medium Voltage and High Voltage reactive power equipment.

Our vast experience designing and supplying MV Harmonic Filters and Capacitor Banks will ensure a reliable and safe operation.

As the demand for electricity continues to rise, the need for efficient energy storage and power factor correction becomes increasingly important. Capacitor banks, composed of multiple capacitors connected in series or parallel, play a crucial role in storing electrical energy and improving power factor in a wide range of applications.

Available options

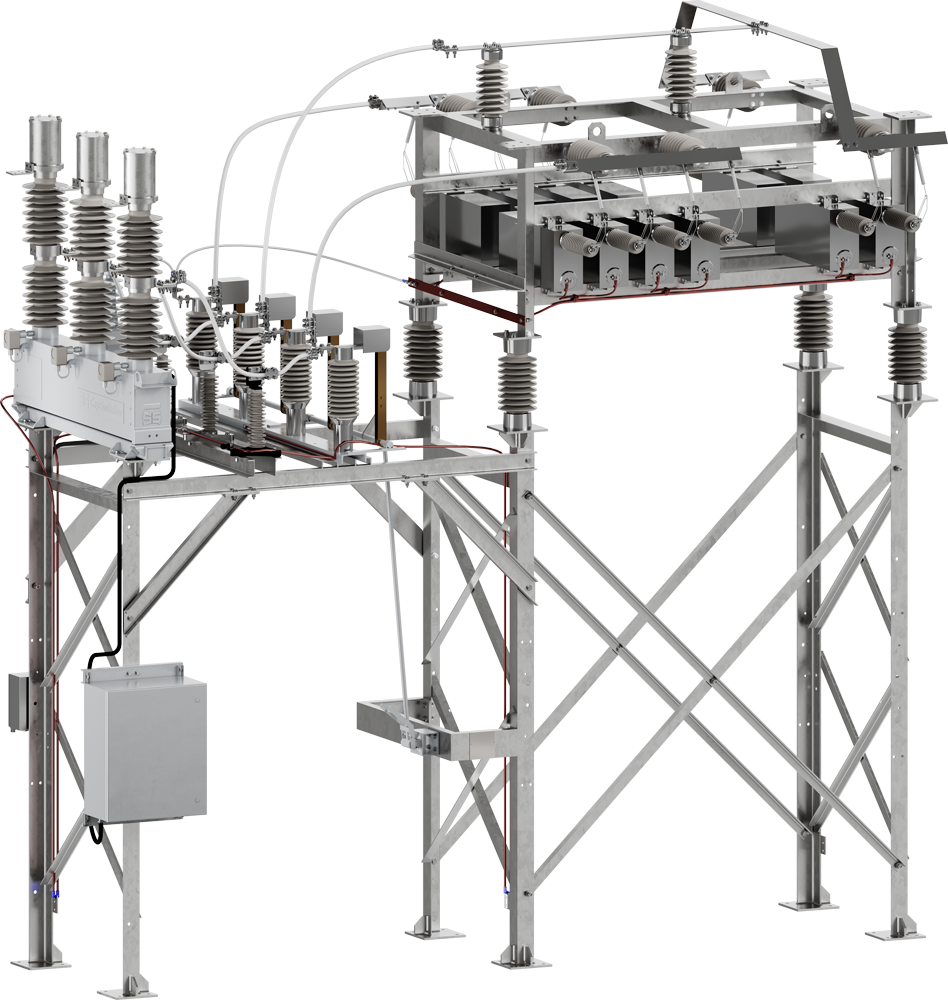

Open rack

The most widely used solution

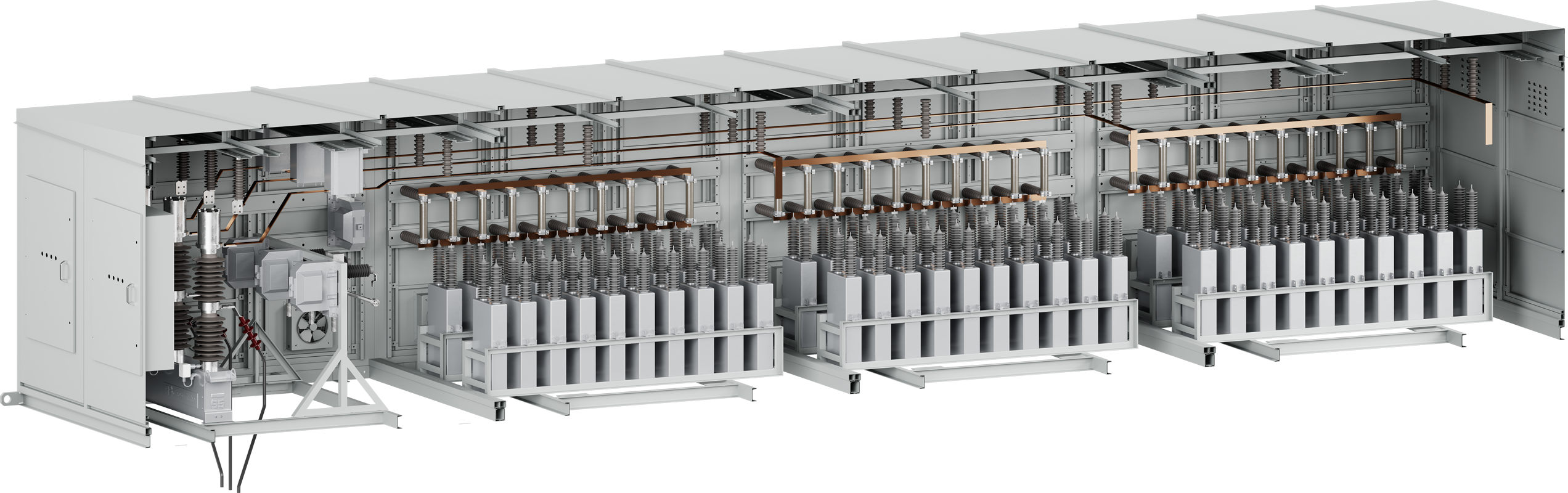

Metal Enclosed

Easy installation and customizable solution

Containerized

Plug & play and stackable solution

Medium & High Voltage Capacitor Banks

Cap Banks Applications

Capacitor banks are a crucial part of energy management in a wide variety of industries. Here are some of the ways our customers use cap banks from Southern States:

Renewable Generation

Capacitor banks play a crucial role in maintaining grid stability, which is essential for accommodating the variability of renewable energy sources and ensuring a consistent and reliable power supply.

Transmission & Distribution

By installing capacitor banks strategically along the transmission and distribution lines, utilities can reduce the amount of reactive power that needs to be supplied by the system, leading to a more efficient use of electrical power. This results in several advantages, including reduced energy losses, increased transmission capacity, and improved voltage regulation. Ultimately, capacitor banks contribute to the overall reliability and performance of the transmission system.

Industrial loads

Optimizing power factor brings substantial benefits to industrial loads, including efficient energy use, reduced system losses, and augmented system capacity. The most cost-effective remedy for achieving these advantages is the integration of medium voltage capacitor banks, promising attractive returns on investments. At Southern States, our expertise enables us to guide our customers in specifying optimized solutions, ensuring that the anticipated results are not only met but surpassed.

What Sets Southern States Apart From Other Capacitor Bank Suppliers

When you need capacitor banks for power factor correction or reactive power support, Southern States has the solutions you need. With decades of experience in supplying industrial capacitor banks, our team can provide a customized solution that is tailored to your specific application and unique needs.

  • Hidden

Transform Your Electrical Energy Power System

The modern electrical grid faces immense challenges in meeting reactive power demands while maintaining stability and efficiency. Fluctuating power flows, intermittent renewables, and growing loads with power electronics all contribute to voltage fluctuations, lagging power factor, and equipment damage from harmonics.

Capacitor banks provide a versatile solution, acting as a reactive power reservoir to smooth variations and optimize grid performance.

Voltage Stability

By providing reactive power support, capacitor banks help maintain voltage stability in transmission lines and distribution networks. They compensate for voltage drops caused by inductive loads.

Power Factor Correction

Capacitor banks offset inductive loads that cause lagging power factors. Correcting power factors reduces losses and improves transmission efficiency.

Understanding Cap Banks

Capacitor banks are an integral component in electrical systems that help optimize network performance. They function by storing energy in electric fields within capacitors and releasing it to supply reactive power as needed.

What is a Capacitor Bank?
A capacitor bank is a group of capacitor units connected in series or parallel that work as a single unit. They store energy and release it to the network when required.
How Capacitor Banks Work
A capacitor for power factor correction works by storing energy in their electric field and releasing it to supply reactive power as needed. This allows them to stabilize voltage and provide power factor correction.
What is the difference between a capacitor bank and a harmonic filter?
As previously discussed, a capacitor bank consists of a collection of power factor correction capacitors interconnected in either series or parallel, functioning as a unified system.

Now, when we introduce a reactor into this capacitor bank configuration, we transform it into a harmonic filter. The term “harmonic filter” is derived from the synergy between the capacitor’s capacitance and the reactor’s inductance, which collectively establish a low-impedance pathway tailored to a specific frequency. To simplify this concept, think of harmonic filters as constructing a high-speed express lane with minimal resistance for electrons operating at a particular harmonic frequency.

By carefully selecting the appropriate combination of capacitance and inductance, we can effectively engineer this low-resistance pathway, designed to filter out and mitigate current harmonics from the overall system.

Is capacitor bank switching complex?
Switching capacitor banks in an electrical system can lead to transient voltage and current effects, impacting equipment, power quality, and safety.

Energization:
Capacitor banks initially resemble a short circuit during energization, causing voltage drops and transient overvoltages. While not typically harmful to utility equipment, they can affect sensitive customer equipment.
In back-to-back arrangements, energizing the second bank may lead to high inrush currents, shortening the device’s life.

De-energization:
When a capacitor switch opens, the voltage across the contacts combines system and capacitor bank voltages. This can cause re-strikes, generating overvoltages approaching up to 3 p.u.
Re-strikes can trigger issues like ruptured capacitor cans, blown fuses, and contact wear, leading to dielectric failures.

In summary, managing transient effects during capacitor bank switching is crucial. Specialized products, like Southern States’ CapSwitcher®, offer an effective solution. Learn more about CapSwitcher®, a field-proven approach by Southern States.

How do I choose a capacitor bank capacity?

Sizing a capacitor bank involves determining the appropriate capacitance, voltage rating, and configuration of capacitors to achieve specific objectives in an electrical system. The primary goal is usually to improve power factor, reduce energy costs, and enhance voltage stability. Here are the steps to size a capacitor bank:

Power Factor Analysis

Start by conducting a power factor analysis of your electrical system to determine the existing power factor and identify areas where improvement is needed. A power factor below 0.95 (or 95%) is often considered suboptimal.

Determine the Required Power Factor

Decide on the desired or required power factor for your system. This is typically based on utility requirements, cost-saving objectives, or equipment specifications. Common target power factors are 0.95, 0.98, or unity (1.0).

Calculate the Required Reactive Power (kVAR)

The required reactive power can be calculated using the formula: Reactive Power (kVAR) = Active Power (kW) x (tan Φ1 – tan Φ2), where Φ1 represents the existing power factor angle, and Φ2 represents the desired power factor angle (usually close to 0° for unity power factor). However, it’s important to note that this calculation is often more complex in practice, as reactive power needs tend to be variable rather than constant. Nevertheless, this formula can provide a useful initial estimate.

Select the Capacitor Voltage Rating

Choose a capacitor voltage rating that is compatible with the system voltage. The voltage rating should exceed the peak voltage in the system to ensure safety and reliability.

Determine the Capacitor Configuration

Capacitor banks can be configured in many ways. There are many configurations for a capacitor bank. The optimal will depend on the application, voltage level and total power.
