Simplify load break conversions with vacuum interruption

This single-gap interrupter adds load, loop, and line switching capability to existing disconnect switches — no linkage required.

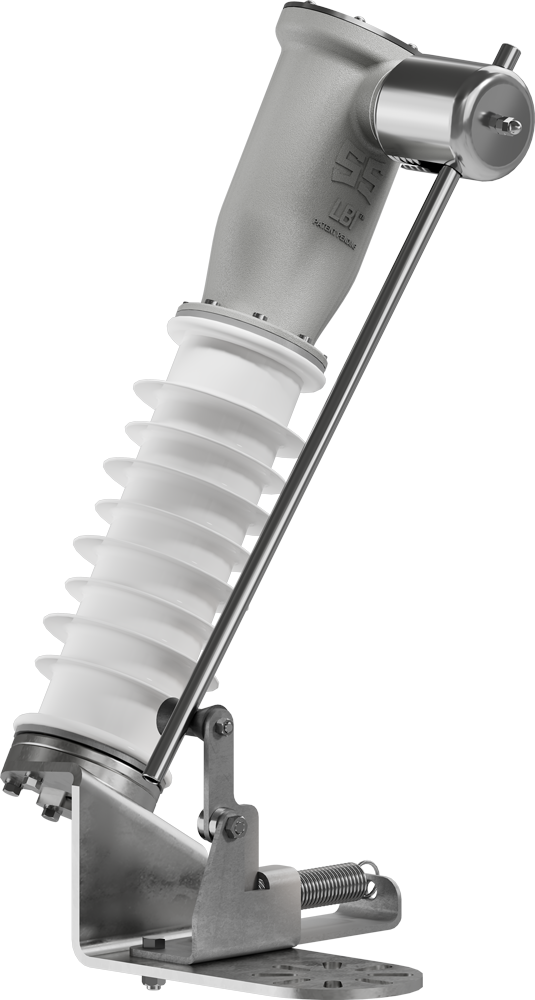

The Southern States LBI™ Load Break Interrupter is designed to easily upgrade group-operated vertical break and side break disconnect switches by enabling them to interrupt load, loop, and line currents — all within a compact, sealed vacuum chamber. By eliminating linkage-based multi-device interruption, the LBI™ simplifies system design and increases long-term reliability.

With models available through 72.5 kV, the LBI™ is compatible with most Southern States switch platforms and select third-party models (contact factory for details). Its PET housing resists UV degradation and keeps the unit lightweight for easier handling and mounting.

Key Benefits:

1. Single-gap vacuum interrupter rated through 72.5 kV
2. Sealed vacuum design eliminates greenhouse gas use
3. PET housing reduces weight and resists UV damage
4. Mounts on substation or transmission side/vertical break switches
5. Compatible with multi-way transmission switches
6. Low operating effort for smooth manual or automated use
7. Minimal linkage components for improved reliability
8. Backed by Southern States' 24/7 after-sales support and long-life engineering
